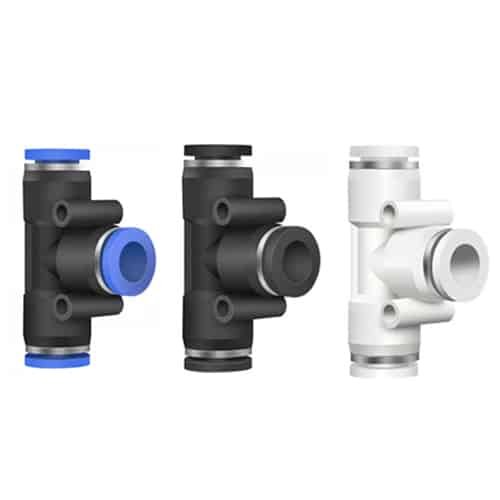

PE Union Tee Pneumatic Fitting
The PE Union Tee Pneumatic Fitting enables reliable T-shaped air tube branching using a push-to-connect design. Built with a 160N stainless steel clip and NBR seal, it resists high pressure up to 1.2MPa while maintaining a leak-free seal. Ideal for splitting pneumatic lines with precision and speed.
| Parameter | Value |
|---|---|
| Product Name | PE Union Tee Pneumatic Fitting |
| Fitting Type | T-Shape Push-to-Connect Branch |
| Compatible Tubing | PU Tube / Nylon Tube |
| Branch Design | Equal Diameter Tee |

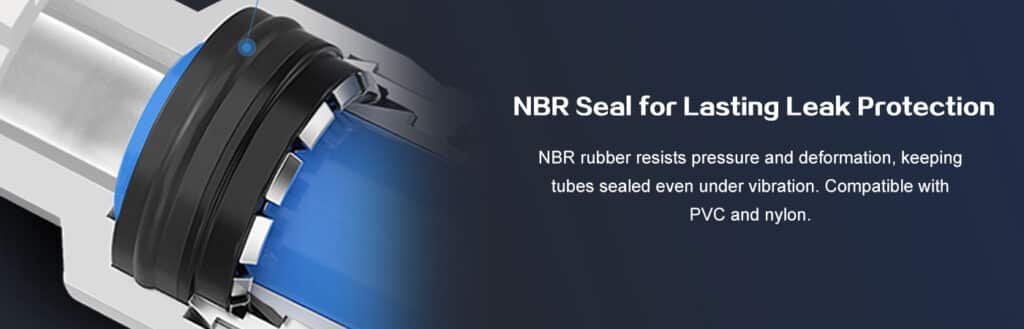

| Seal Material | NBR Rubber O-Ring |
| Clamp Material | Stainless Steel (160N Clamping Force) |
| Working Pressure | Up to 1.0 MPa (10 kgf/cm²) |
| Max Holding Pressure | 1.2 MPa (12 kgf/cm²) |
| Operating Temperature | 0~60°C |
| Application | Pneumatic Tube T-Junctions in Industrial Use |
